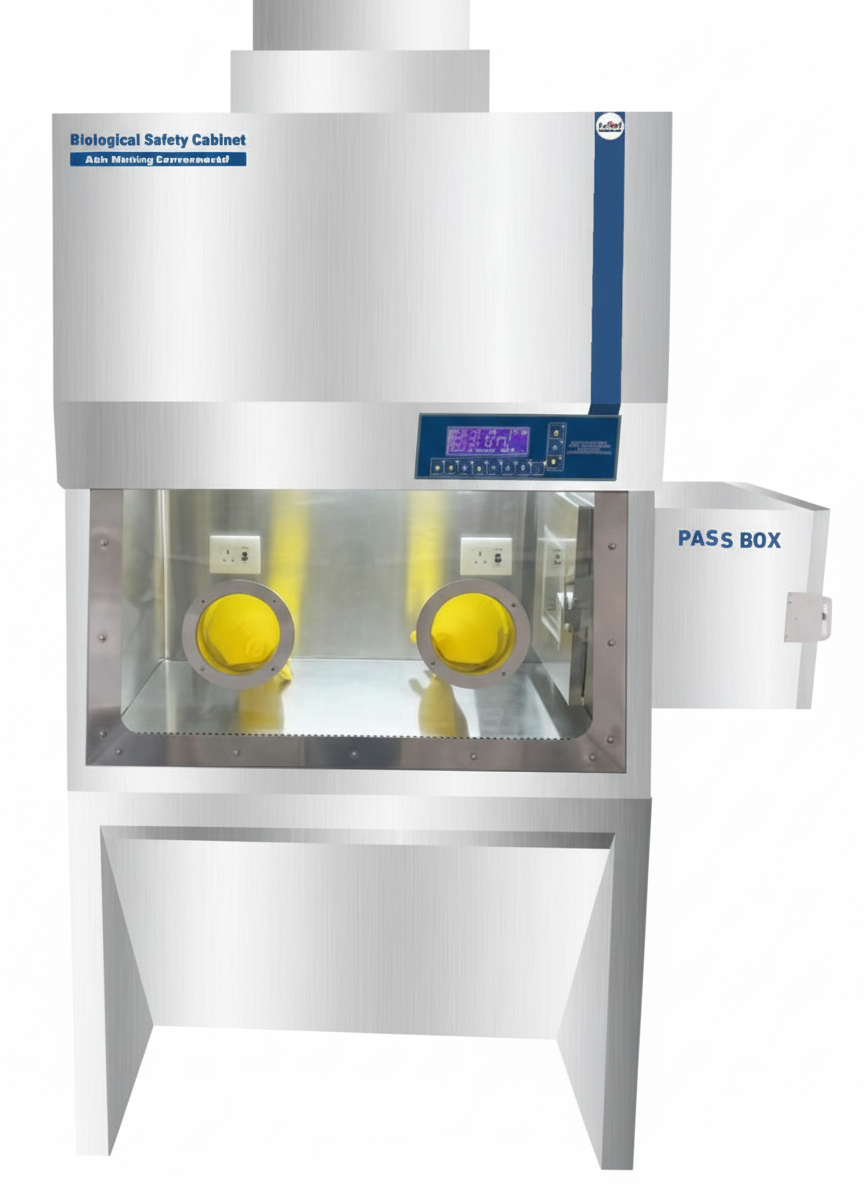

Biological Safety Cabinet - Class III-500 Series

Introduction

The LuxMed® Biological Safety Cabinet Class III-500 Series is engineered to provide the highest level of biosafety containment for laboratories handling Risk Group 4 (BSL-4) pathogens, carcinogenic chemicals, and extremely hazardous biological materials. This cabinet establishes a complete physical barrier between personnel and biological agents through a gas-tight, fully sealed chamber operating under total negative pressure.

Designed for critical research environments, the Class III-500 Series ensures zero direct contact with hazardous materials while maintaining consistent and controlled airflow via a dedicated exterior exhaust system.

Maximum Safety Through Total Isolation

Unlike Class I and Class II cabinets, the Class III BSC functions as a sealed glove-box system. All handling is performed through attached heavy-duty gloves, eliminating direct exposure risks.

• 100% air exhaust with 0% recirculation

• Complete negative pressure inside the work chamber

• Exterior ducted exhaust system for safe air discharge

• Triple-stage ULPA filtration for supply and exhaust air

Key Features of LuxMed® Class III-500 Series

• Two-layered ≥5 mm marinated toughened glass motorized front window

• Fully sealed front window (≥8 mm thickness) for gas-tight containment

• Remote control operation for sash movement and fan speed

• Motorized front window with timer function

• Digital LCD display for real-time parameter monitoring

• UV lamp (253.7 nm) for highly efficient decontamination

• Foot switch for ergonomic front window height adjustment

• SS 304 stainless steel work surface

• Low noise, energy-efficient design

• Audio-visual alarms for filter replacement, abnormal airflow, and window status

• Integrated LuxMed® Air Flow Sensor

Advanced Filtration & Airflow System

• Air Supply Filter: ULPA, 99.999% efficiency (0.1–0.3 µm)

• First Exhaust Filter: ULPA, 99.999% efficiency

• Second Exhaust Filter: ULPA, 99.999% efficiency

• Pre-filter: Washable

• Air Velocity: >355 CFM

• Noise Level: ≤65 dB

Applications

The LuxMed Biological Safety Cabinet Class III-500 Series is widely used in:

• BSL-4 and high-containment laboratories

• Handling of carcinogenic and toxic chemicals

• Research on highly infectious and lethal pathogens

• Disease study and vaccine research facilities

• Government, pharmaceutical, and industrial research labs

• Maximum-containment microbiology and virology labs

Technical Specifications (Highlights)

• Type: Class III

• Chamber Material: Epoxy-coated cold-rolled steel

• Airflow: 0% recirculation, 100% exhaust

• Negative Work Zone Pressure: Fully maintained

• Lighting: ≥800 Lux

• Display: LCD

• Standard Accessories:

  • Fluorescent lamp

  • UV lamps ×4

  • Pressure meter

  • Remote control

  • Drain valve

  • Gloves

Conclusion

The LuxMed® Biological Safety Cabinet Class III-500 Series represents the highest standard in biosafety containment technology. Built for laboratories that demand absolute protection while working with the most dangerous biological and chemical agents, it ensures total isolation, regulatory compliance, and operator confidence.
